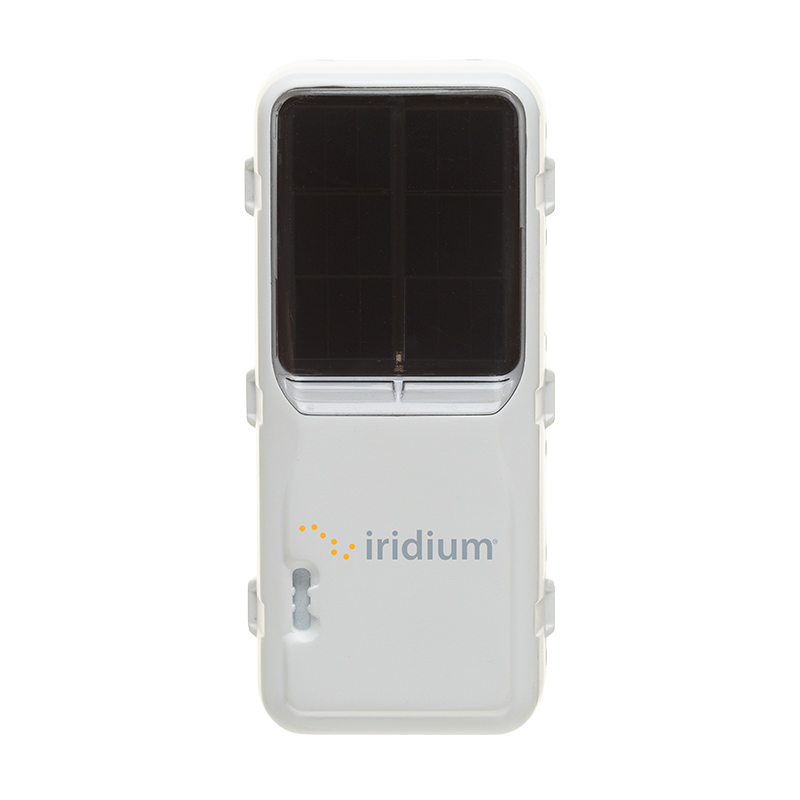

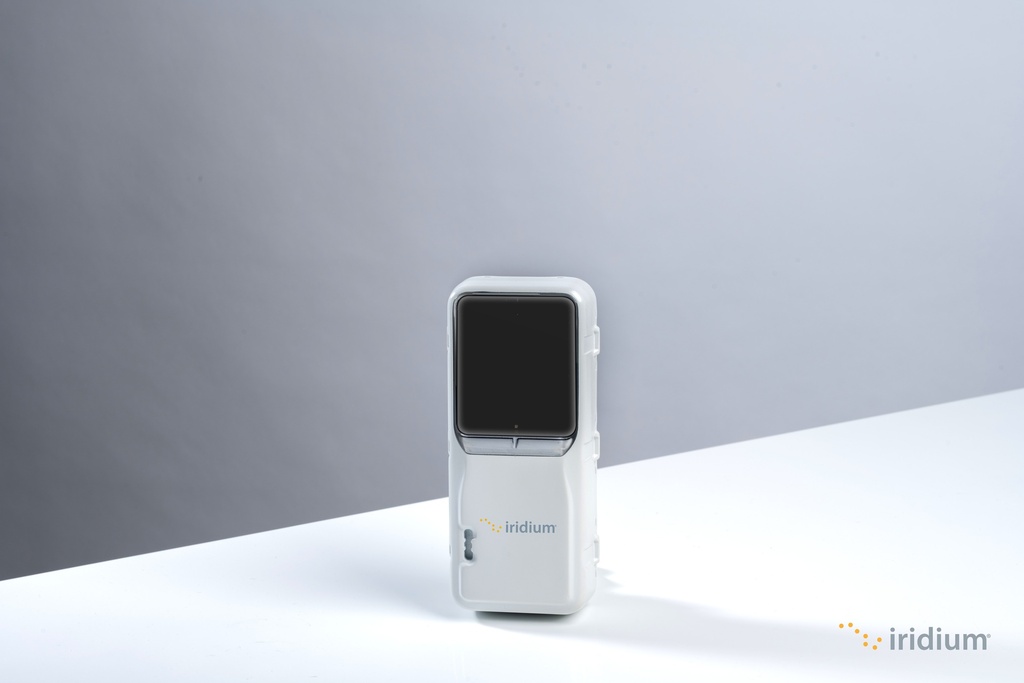

Iridium Solar Edge

https://www.trueglobal.me/web/image/product.template/27/image_1920?unique=8bf8c27

Iridium Edge Solar enables long-term deployment of asset tracking, monitoring and management solutions. A standalone and programmable, solar-powered Short Burst Data® (SBD®) device, Iridium Edge Solar offers real-time GPS tracking and local wireless sensor and communication capabilities over Bluetooth.

$ 0.00 0.0 USD $ 0.00 VAT Excluded

$ 0.00 VAT Excluded

This combination does not exist.

Contact Us To Order

Terms and Conditions
Import Duties and Taxes May Apply
Shipping: 4-5 Business Days

FEATURES

Bluetooth capability for wireless sensor integration and local device connectivity

Over-the-Air Configuration Changes

Interval and Scheduled Reporting Modes

Start/Stop Reporting/In Motion Reporting

Fully Encapsulated, No External Connectors, Water Ingress Protected

Accelerometer and Magnetometer

LED Status Indicator

POWER MANAGEMENT nternet of Things (IoT) deployments.

FEATURE

Photovoltaic Solar Cells, Rechargeable and Primary Batteries

Smart Power Management System

Up to 3-year Shelf Life

Up to 10-Year Operational Service Life

Back-up battery capacity provides 2x per day reporting for

up to 5 years with no solar availability


The Iridium Edge® Solar is a standalone and programmable, solar-powered Short Burst Data (SBD®) device that offers

real-time GPS tracking and local wireless sensor and communication capabilities over Bluetooth. The product’s self

charging, low maintenance, long field life and over-the-air configuration allow Iridium Value-Added Resellers to create

distinct tracking applications that can also be implemented to create even more complex solutions.




MECHANICAL SPECIFICATIONS

Dimensions

Weight

164.2 mm x 71.2 mm x 32.9 mm (L x W x H)

~ 470 grams

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature

• High Temperature

Resistance

• Low Temperature

Resistance

• Recommended Storage

Temperature

• Combined Thermal and

Humidity Exposure

• Solar Radiation Exposure

• Salt Fog Exposure

• Combined Operational

Temperature and Altitude

• Thermal Shock

• Impact Resistance

• Operational Vibration

• HALT

• Mechanical Shock

• Reliability

• Ingress Protection

-40°F to 185°F (-40°C to 85°C)

MIL-STD-810G:501.5, IEC60068-2-2 to185°F (85°C)

MIL-STD-810G:502.5, IEC60068-2-1 to -58°F (-50°C)

Store below 90°F (32°C) for best results

MIL-STD-810G:507.5, 20-95%RH up to 140°F (60°C)

UL746C F1, ASTM-G154 to 1.0 yr

MIL-STD-810G:509.5 IEC60068-2-11 to 1000 hrs

MIL-STD-810G:500.6 to 15000 ft

MIL-STD-810G:503.5, 20 cycles between -40°F

to 185°F (-40°C to 85°C) < 1min transition

ASTM D3763

MIL-STD-810G:514.7, IEC60068-2-80 to

7.5Grms Random (5Hz-2000Hz)

Qualmark HALT testing guideline 993-0336, Rev 4

to 50Grms (5Hz – 10000Hz, -40°F to 185°F [-40°C

to 85°C])

MIL-STD-810G:516.7 to 300Gpk

IPC9592a

IP68

INITIAL RELEASE CERTIFICATIONS

FCC

Industry Canada (IC)

EU

CB Ordinary Locations

Classification

OSHA Ordinary

Locations Safety

Part 15, Part 25

RSS-210, 247, ICES-003 Class B

R&TTE Directive 1999/5/EC

IEC/EN 60950-1, EIC/EN 60950-22, CAN / CSA

C22.2 N° 60950-1-03, N°. 60950-22-03

ANSI / UL 60950-1, 60950-22

CERTIFICATIONS

Brazil

Australia/New Zealand

Mexico

ANATEL Resolucao N° 506 e Resolucao N° 442

RCM - CISPR22

IFITEL, NOM121
